Industrial Grade DC BRUSHLESS Motor with Peak Torque 0.042 N-m and B Insulation Class

Place of Origin China
Nama merek Hetai
Sertifikasi CE,ROHS
Model Number 24BLX
Kuantitas min Order 50
Waktu pengiriman 30 hari

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Tegangan nominal 24VDC Arus puncak 0,9
Torsi konstan 0,044Nm/Amp Kecepatan nominal 3000RPM
Listrik nominal 0.3amp Inersia Rotor 2.6g·cm2
Massa 0,065KG Kisaran Suhu Sekitar -20 ℃ ~ + 50 ℃
Torsi terukur 0,014 Nm Jumlah tiang 4
Cahaya Tinggi

Industrial Grade DC BRUSHLESS Motor

,

0.042 Nm DC BRUSHLESS Motor

,

B Insulation Class DC BRUSHLESS Motor

Tinggalkan pesan
Deskripsi Produk

Product Description:

The motor is rated at 24VDC, ensuring reliable and stable performance. With a body length of only 30mm, it features a compact structure, making it easy to integrate into your design. Compared to higher voltage motors, it offers greater safety by reducing the risk of electric shock, making it suitable for applications that require high safety standards.



Despite its small size, it boasts a high back EMF of 4.6V/kRPM, ensuring it can handle high loads and maintain stable speeds. The low current of 0.3A means the motor generates less heat, reducing cooling requirements, extending the motor's lifespan, and maintaining a more stable operating temperature.



Additionally, the motor has a B-class insulation rating, meaning it can operate at temperatures up to 120°C without any issues.

In summary, our MICRO 24V brushless DC motor is a reliable and efficient choice for any application requiring a high-power, compact motor.



What are you waiting for? Order today and experience the power and performance of this amazing motor for yourself!



Features:

Product Name: Brushless DC Motor

Weight: 0.065, Body Length: 30mm Light weight and small size, easy to install and move, especially suitable for portable equipment Rated.



Speed: 3000rpm can provide smooth and precise speed control. This is especially important for application scenarios that require precise operation.



Power: 4W High power density. High power density motors are suitable for applications that require high power output but are limited by space.



They offer the advantages of high efficiency, compactness, low maintenance, light weight, high power density and high reliability in a small footprint.



Technical Parameters:

Rotor inertia 2.6g·cm2
Insulation Class B
Rated Speed 3000rpm
Insulation Resistance 100MΩ Min.500V DC
Peak Current 0.9
Rated Voltage 24VDC
Rated Current 0.3Amps
Applications Robotics, Electric Vehicles, Industrial Automation
Ambient Temperature Range -20℃~+50℃
Body Length (L) 30mm

This MICRO Brushless DC Motor has HIGH TORQUE and is suitable for door operation.

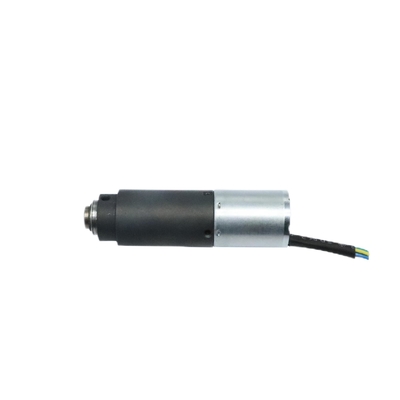

Industrial Grade DC BRUSHLESS Motor with Peak Torque 0.042 N-m and B Insulation Class 0



Applications:

One potential application for the Hetai 24BLX motor is for door operation.

The motor's high torque capabilities make it ideal for this purpose, as it can easily open and close heavy doors. Additionally, the motor's MICRO capabilities allow for precise control, ensuring that the door operates smoothly and accurately every time.



Another potential use for the Hetai 24BLX motor is in MICRO applications.

Its small size and high precision make it ideal for use in devices that require fine control, such as medical equipment or scientific instruments.

In addition to its other features, the Hetai 24BLX motor has a rotor inertia of 2.6g·cm2, which helps to improve its overall performance. The motor also has excellent insulation resistance of 100MΩ Min.

500V DC, ensuring that it will continue to function properly even in harsh environments.



Overall, the Hetai 24BLX Brushless DC Motor is a versatile and reliable motor that can be used in a wide variety of applications. Whether you need a motor for door operation, MICRO applications, or any other purpose, the Hetai 24BLX is an excellent choice.



Customization:

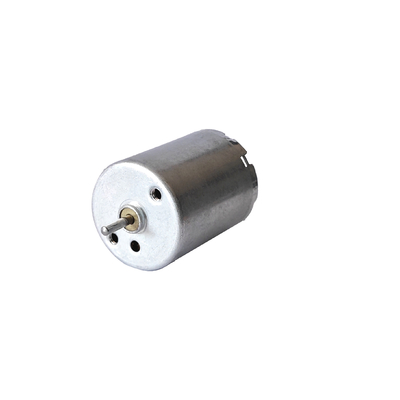

Industrial Grade DC BRUSHLESS Motor with Peak Torque 0.042 N-m and B Insulation Class 1

When it comes to customizing motor products, customers may need to meet specific application requirements or space limitations. Here are some customization options:



Wire Customization:

Customers may require wires of specific lengths or types to fit their particular installation scenarios or electrical layouts. Customized wires can ensure better connectivity and reliability.



Flange Customization:

Flanges are critical components that connect motors to external mechanical systems. According to customer requirements, flanges can be customized to fit specific installation dimensions, bolt hole layouts, or special material requirements.



Shaft Customization:

Customers may need customized shafts to adapt to specific connection requirements or to fit with other mechanical components.



Screw Customization:

Screws are crucial components in some motor systems, such as stepper motors or linear actuators. Customers may require customized screws to meet specific pitch, diameter, material, or corrosion resistance requirements.



Encoder Customization:

Encoders are used to measure the position and speed of motor rotation. Customized encoders can meet specific resolution, interface type, housing material, or environmental requirements.



Brake Customization:

Brakes are used to stop or hold motors in specific positions. Customized brakes can provide specific braking force, release time, installation methods, and other functionalities according to customer needs.



Gearbox Customization:

Gearboxes are used to adjust the speed and torque of motors. Customizing different types of gearboxes can meet specific speed ratios, output shaft configurations, load capacities, or noise requirements.



Other Customization Needs:

Customers may also require other customization options such as special housing designs, protection ratings, customized labeling, or packaging requirements. These customization options can help customers obtain motor products that meet their specific application needs and ensure their performance and reliability in particular environments.





Support and Services:

Our Brushless DC Motors are designed to provide high efficiency, low noise, and long-lasting performance. We offer a variety of technical support and services to ensure that your motor operates at its optimal level:

Industrial Grade DC BRUSHLESS Motor with Peak Torque 0.042 N-m and B Insulation Class 2




  • Installation and commissioning guidance
  • Customization of motor parameters to meet your specific requirements
  • On-site maintenance and repair services
  • Remote technical support via phone and email
  • Training for your technical staff on motor operation and maintenance



Our team of experienced engineers and technicians are ready to assist you with any technical issues or questions you may have regarding our Brushless DC Motors. Contact us for more information on our technical support and services.
